ErgoAV™ Black Full Motion TV Wall Mount

ErgoAV

Model #:

ERMMM1-01B

Model #: ERMMM1-01B
1543706
ErgoAV
$79.99

At a Glance

Product Dimensions 16.53"h x 17.12"w x 19.51"d

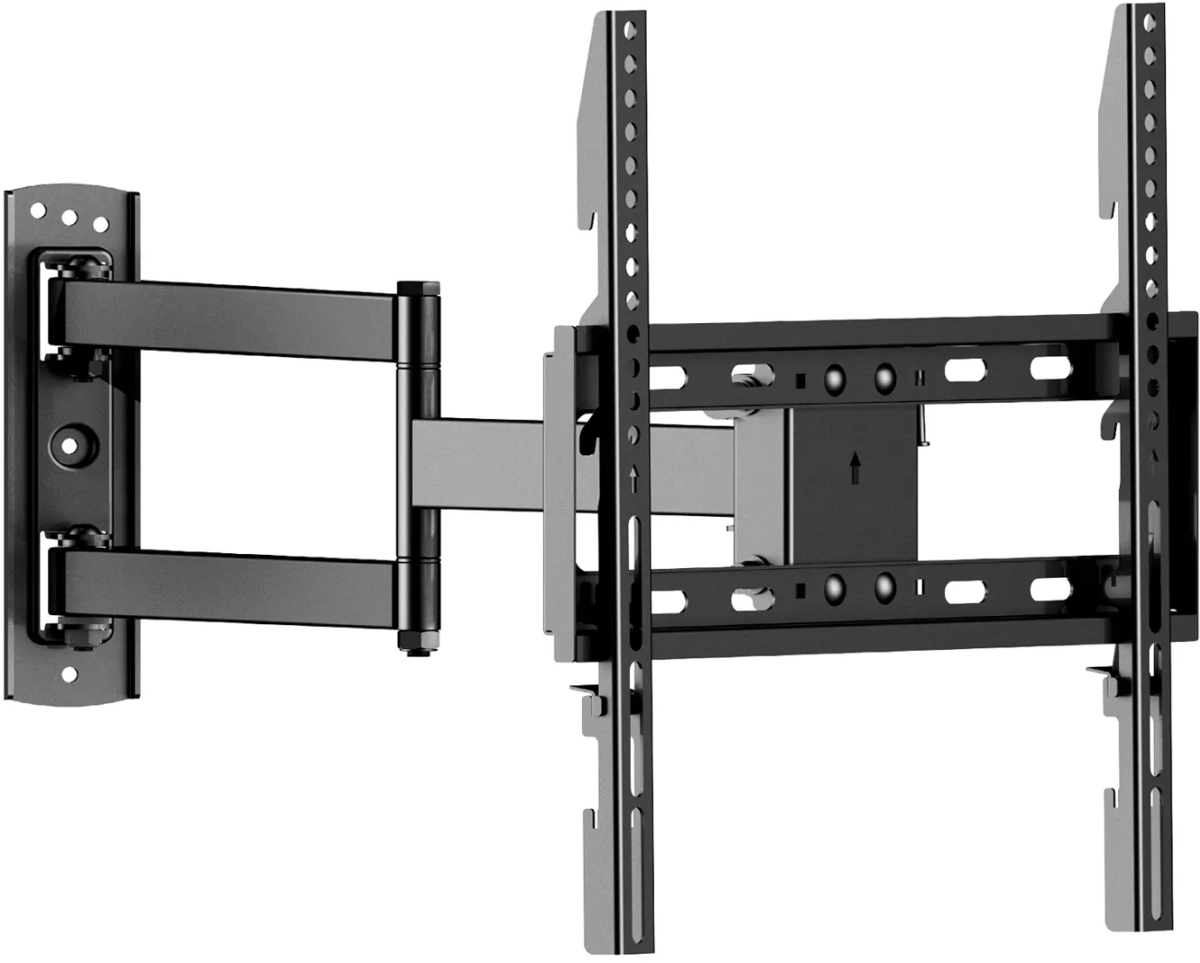

The ERMMM1-01B motion mount fits most TVs 40" to 55" and up to 77 lbs. This single stud mount extends 19.5" from the wall and can be swiveled left or right and tilted, making it possible for you to get optimal viewing in any seating location.Read More

$79.99

Get to know this product.

Product Overview

Product Overview

Universal Compatibility – Fits most TVs 40-55″ with VESA pattern from 75 x 75mm to 400 x 400mm weighing up to 77 lbs

Level adjust allows the TV to be properly leveled after installation. Safety tested and UL certified.

Cable Management system creates a neat and clean appearance, even when mount is fully extended

Easy three step installation. Step-by-step instruction, wall plate template, and universal hardware bag are included in the package

Useful Documents
Installation Instructions
Specification Sheet
Specifications

General Specs

Product Weight (lbs.)6.5
TiltYes
Depth (in.)19.51
Width (in.)17.12
Height (in.)16.53
Mount TypeFull Motion (Articulating)
Low ProfileYes
TV Size's up to (in.)55
Weight Capacity (lbs.)77
Mounting LocationWall
Compatible Vesa Sizes200×100; 200×200; 200×300; 200×400; 300×100; 300×200; 300×300; 300×400; 400×100; 400×200; 400×300; 400×400
Manufacturer Warranty5 Year
Color Finish NameBlack
Shipping Depth (in.)11.02
Shipping Width (in.)20.07
Shipping Height (in.)4.13
Number Of Mounts1

Additional Specifications

Extension 19.5"
Stud Spacing Single Stud
Swivel Range +50 °/ -50 °
Tilt Range +5 °/ -12 °
Level Adjust Yes
